Ürün Açıklaması
Ürün özellikleri
model numarası.: QM4830-EU-60-H
Marka: QM
Origin: Çin
belgeleme: TUV/CE/ISO/CQC
Anavatan: Çin
Çeşitleri: DC / DC Dönüştürücüler, DC / AC Çeviriciler
Output Power: >1000W
Nature Of Wave String: Sine Wave Inverter
AC Output Loaded Motor Capacity: 6000va
AC Output Voltage: 230V(200/208/240V Settable)
PV Charging Current Range(Can Be Set): 0-60A
Wiring Protection: Inverse Wiring Protection
Maximum PV Open Circuit Voltage: 500V
Maximum Charge Current: 60A
AC Reverse Protection: Yes
Specification: 426*322*126mm
Tedarik Yeteneği ve Ek Bilgiler
Ambalaj: Standart İhracat Karton Paketi
Verimlilik: 500000pcs/year
Ulaşım: Ocean,Express
Menşe yeri: Çin
Desteklemek: 500000pcs/year
Sertifika: TUV/CE/ISO/CQC
HS Kodu: 8504403090
Liman: Ningbo-Zhoushan Port
Ödeme şekli: L/C,T/T,Paypal
Incoterm: FOB,CIF,DDP
Ürün Açıklaması
| Model | QM4830-EU-60-H | QM4850-EU-80-H |
| AC Charge | ||
| Battery Type | Lithium-ion/Lead-acid/User Define | |
| Max. AC Charge Current (A) | 60 | |
| Charge Voltage Range (Vdc) | 40~60 | |
| Short Circuit Protection | Circuit breaker and blown fuse | |
| Circuit Breaker Specifications (A) | 40 | |
| Solar Charge | ||
| Max. PV Open Circuit Voltage (Vdc) | 500 | |
| MPPT Voltage Range (Vdc) | 120~450 | |
| Battery Voltage Range (Vdc) | 40~60 | |
| Max. PV Input Power (W) | 4,400 | 5,200 |
| Max. PV Input Current (A) | 18 | |
| Max. PV Charging Current (A) | 60 | 80 |
| Max. Hybrid Charge Current (A) | 80 | |
| Charge Short Circuit Protection | Blown fuse | |
| Wiring Protection | Inverse wiring protection | |
| AC Input | ||
| Rated Input Voltage (Vac) | 220/230 | |
| Input Voltage Range (Vac) | UPS: (170~280) ±2%; APL: (90-280)±2% | |
| Frequency (Hz) | 50 / 60 (Auto sensing) | |
| Frequency Range (Hz) | 47±0.3~55±0.3 (50) / 57±0.3~65±0.3 (60); | |
| Overload/short Circuit Protection | Breaker | |
| Efficiency | >95% | |
| Conversion Time (bypass and inverter) | 10ms (Typical value) | |
| AC Reverse Protection | yes | |
| Max. Bypass Overload Current (A) | 40 | |
| AC Output | ||
| Output Voltage Waveform | Pure sine wave | |
| Rated Output Power(W) | 3,000(2,600/2,700/2,850/3,000) | 5,000(4,350/4,500/4,750/5,000) |
| Power Factor | 1 | |
| Rated Output Voltage (Vac) | 230(200/208/220/240 settable) | |
| Output Voltage Error | ±5% | |
| Output Frequency Range (Hz) | 50±0.3 / 60±0.3 | |
| Max. Efficiency | >92% | |
| Overload Protection |
(102% < load <125%) ±10%: report error and turn off the output after5 minutes; (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds; Load >150% ±10%: report error and turn offthe output after 5 seconds; |
|
| Peak Power (VA) | 6,000 | 10,000 |
| Loaded Motor Capacity (HP) | 2 | 4 |
| Output Short Circuit Protection | Breaker | |
| Bypass Breaker Specifications (A) | 40 | |
| Rated Battery Input Voltage (Vdc) | 48 (Minimum starting voltage 44) | |
| Battery Voltage Range (Vdc) | 40.0~60 ± 0.6 (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery settable on LCD screen) | |
| No Load Loss (W) | Non Energy-saving Mode: <=50W; Energy-saving Mode: <=25W | |
| General | ||
| Certification | IEC62109, EN61000 | |
| Operation Temperature Range (°C) | -15 ~ 55 | |
| Storage Temperature Range (°C) | -25 ~ 60 | |
| Humidity Range | 5% to 95% (Conformal coating protection) | |
| Noise (dB) | ≤ 60 | |
| Heat Dissipation | Forced air cooling, variable speed of fan | |

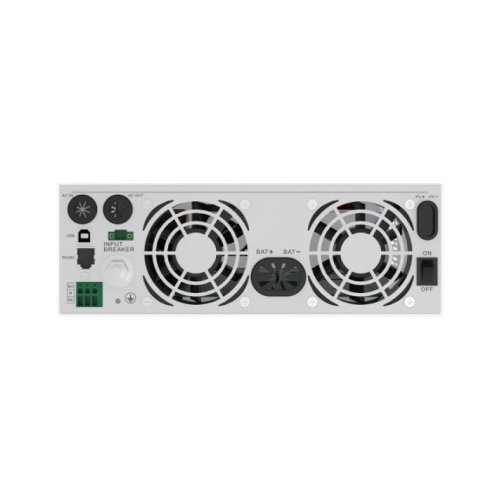

| Communication Interface | USB/RS485/dry node control | |
| Size (mm) | 426Lx322Wx126D | |
| Weight (kg) | 10.9 | |
